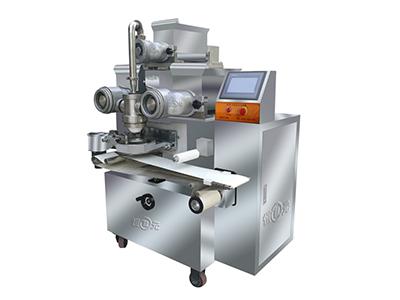

The HYB-D solid and liquid filling encrusting machine features a two screw conveyor system in order to transport the raw materials. It also uses a secondary transmission design, which ensures a stable product weight, and reduce damage to stuffing and dough sheets. This equipment can encrust entire food pieces, as well as add filling such as peanuts, sugar, jam, jelly, chocolate and more.
Technical Parameters
Overall size (L x W x H)
1300x800x1700mm
Output
1000-6000 pcs/h
Equipment power
4.0kw
Equipment weight
600kg
Equipment voltage
220/380V
Finished product weight
10-300 g/pc
Equipment frequency
50HZ/60HZ
Ratio of dough and stuffing
adjustable
Machine composition diagram
1. Electrical parts

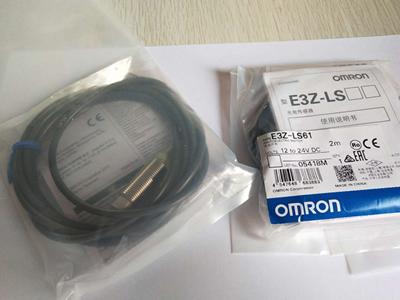

OMRON photoelectricity
OMRON photoelectricity
Japanese IKO bearing
Mikipulley clutch
Delta inverter
2. Control system
Touch screen + PLC intelligent control with memory preservation function: Operation is quick and easy, and available in multiple languages based on customer requirements.
Delta PLC
Delta touch screen
3. Machine frame
The machine frame is made of a seamless edge welding technology with 304 stainless steel.
Features
The entire machine features a compact, reasonable structure that is highly automated, easy to operate and easy to clean.
A double stuffing device can be chosen according to customer requirements, making filling processes easy.
This machine is equipped with a programmable frequency converter and easy to use touch screen control panel. The ratio of the stuffing and dough can be randomly adjusted with outstanding accuracy.
The control system is a micro-computer control interface that will store recipes and other memory functions such as weight. It is easy to operate and features a stable, reliable performance.
The main electrical control parts are all sourced from internationally known brands, ensuring long term, stable and durable operation.
Fitting parts recommendation: moon cake makers, tray arranging machine and other devices can be added upon request.
