TG-II type drinking straw applicator attaches drinking straws to the exterior of drink containers, including paper bottles, plastic cups and bottles, juice boxes and other drinks. In a single row feeding method, this equipment can apply drinking straws to 8,000 pcs/h.
Technical Parameters
Equipment power
3.5kw
Equipment weight
480kg
Equipment output
8000 pcs/h
Equipment voltage
220/380V
Equipment frequency
50HZ
Feeding mode
single row
Conveying belt width
55mm
Operating pressure
0.4-0.6Mpa
Maximum air consumption
100 liters/minutes
More Details
Machine composition diagram
1. Electrical parts
Festo cylinder

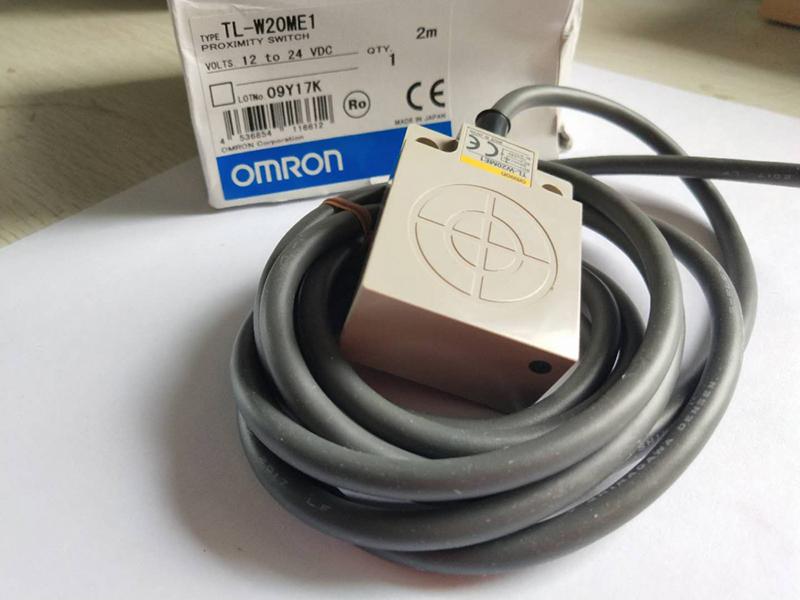

OMRON photoelectricity
Japanese IKO bearing
Mikipulley clutch
Delta inverter
Delta servo motor
Robatech hot-melt glue machine
2. Control system
Touch screen + PLC intelligent control with memory preservation function, and the operation is convenient.
Mitsubishi PLC
Delta touch screen
3. Machine frame
The whole machine frame adopts seamless-edge welding technology with 304 stainless steel.
Features
This straw applicator features a PLC automatic control system, making it capable of automatically completing product conveyance, straw conveyance, straw cutting, straw gluing, pasting and other processes.
The glue melting machine is from Switzerland Robatech, and features a fast glue melting speed, as well as an adjustable gluing amount and running speed.
Using an original German imported Festo cylinder, the machine features an outstanding quality, safety and long service life.
